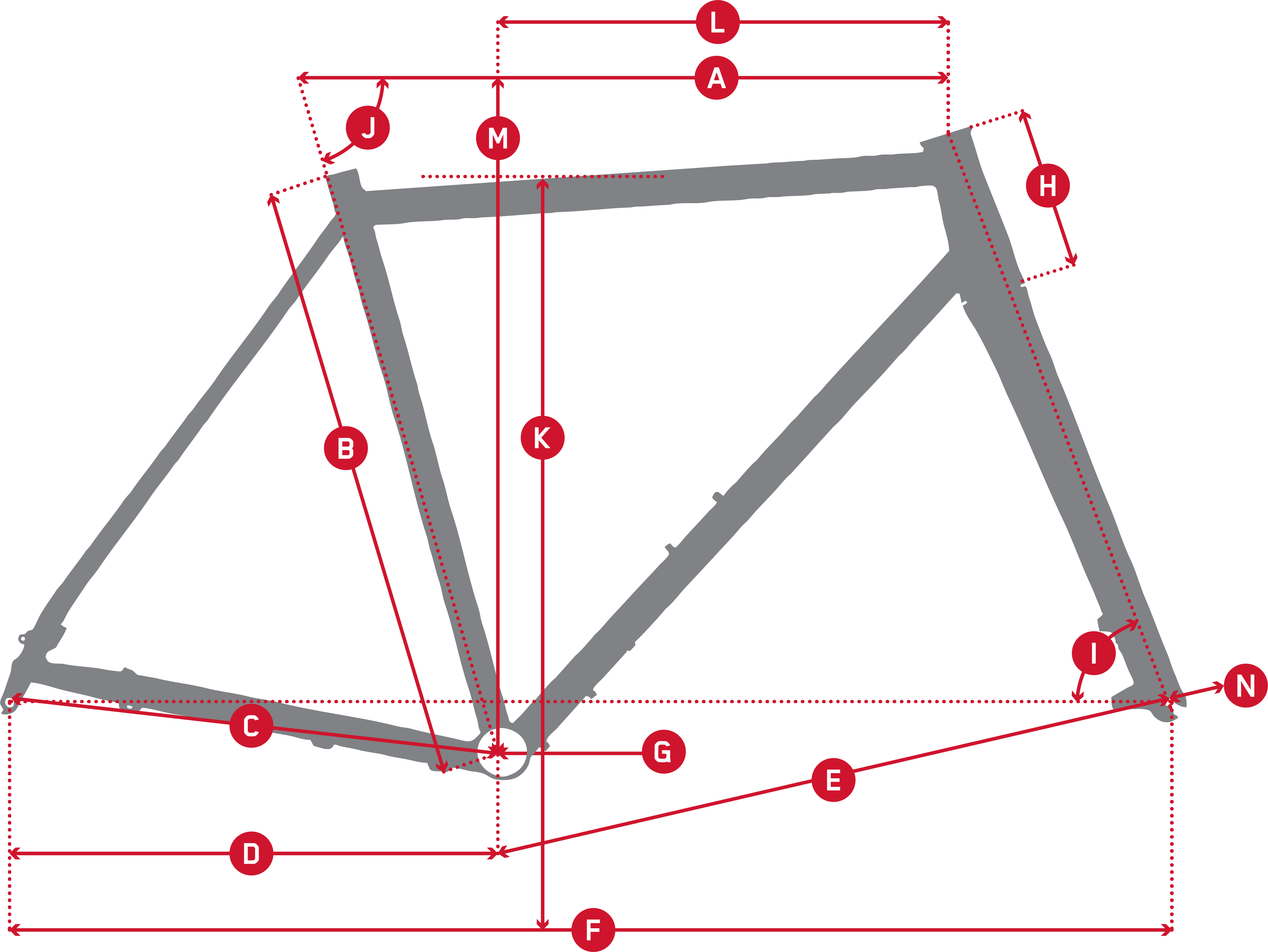

| (A) TT Length | (B) Seat Tube Length | (C) Chainstay Length Actual | (D) Horizontal Chainstay | (E) Front Center | (F) Wheelbase | (G) BB Drop | (H) Headtube Length | (I) Headtube Angle | (J) Seattube Angle | (K) Standover Height | (L) Reach | (M) Stack | (N) Fork Rake | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Metric | |||||||||||||||
| 47cm | 525 | 430 | 435 | 430 | 609 | 1034 | 70.0 | 90 | 69.0 | 74.0 | 693 | 369 | 545 | 50 | |
| 50cm | 556 | 460 | 435 | 430 | 641 | 1066 | 70.0 | 106 | 69.0 | 74.0 | 731 | 395 | 560 | 50 | |
| 53cm | 571 | 490 | 435 | 430 | 658 | 1083 | 70.0 | 126 | 69.0 | 74.0 | 754 | 405 | 579 | 50 | |
| 56cm | 596 | 520 | 435 | 430 | 673 | 1099 | 70.0 | 146 | 69.0 | 73.0 | 780 | 413 | 598 | 50 | |
