RKT9 RDO

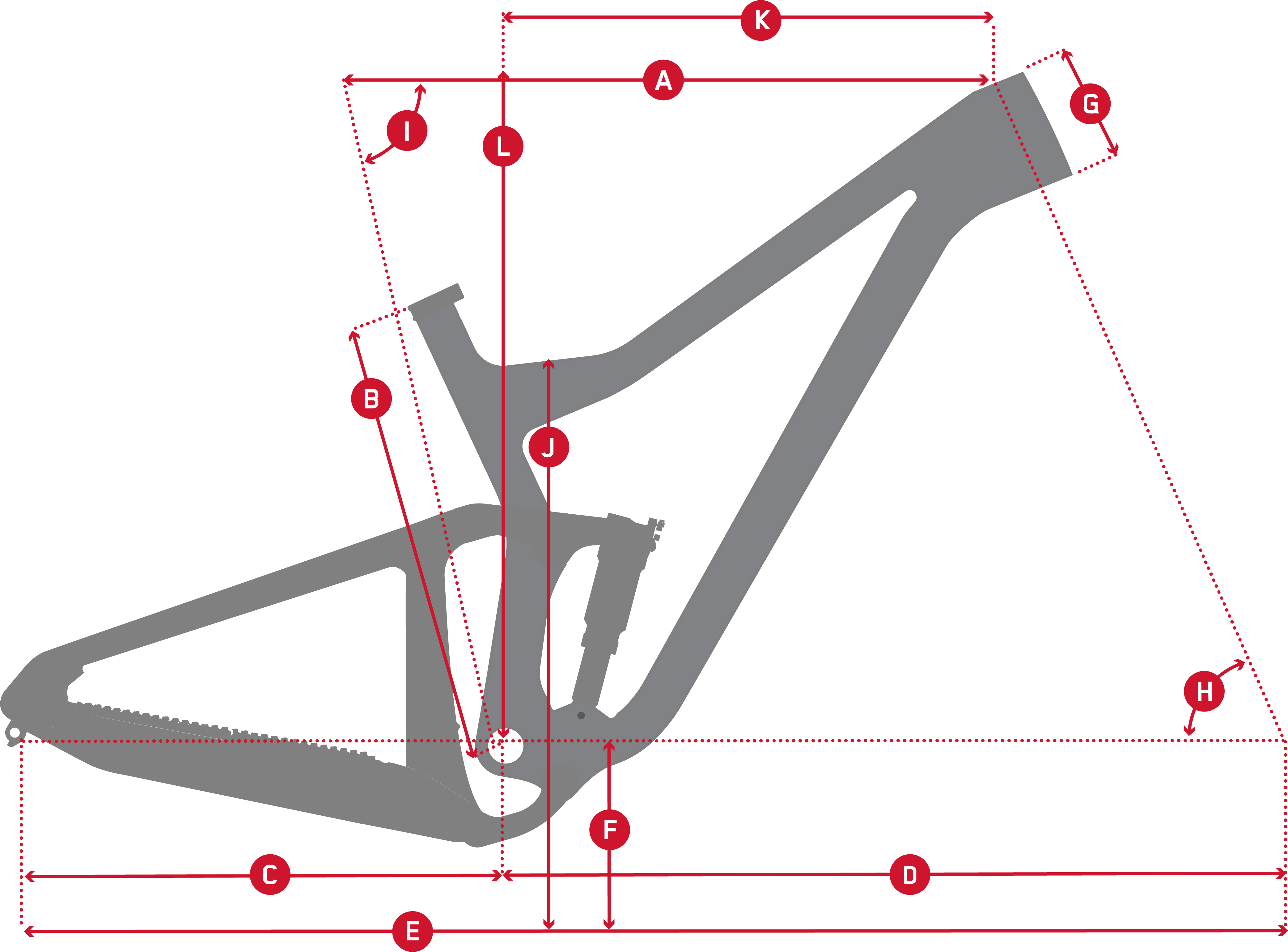

		(A) TT Length		(B) Seat Tube Length	(C) Rear Center		(D) Front Center		(E) Wheelbase		(F) BB Drop		(G) Headtube Length	(H) Headtube Angle		(I) Seattube Angle		(J) Standover Height		(K) Reach		(L) Stack
100mm Fork Travel
	Flip Chip Position	High Mode	Low Mode	-	High Mode	Low Mode	High Mode	Low Mode	High Mode	Low Mode	High Mode	Low Mode	-	High Mode	Low Mode	High Mode	Low Mode	High Mode	Low Mode	High Mode	Low Mode	High Mode	Low Mode
	XS	561	561	351	429	430	673	671	1100	1101	40	45	90	68.0	67.6	75.0	74.6	688	657	405	401	599	576
	S	577	577	376	429	430	690	688	1117	1118	40	45	95	68.0	67.6	75.0	74.6	698	670	420	416	613	590
	M	599	599	406	429	430	712	712	1139	1140	40	45	100	68.0	67.6	75.0	74.6	727	672	440	436	626	595
	L	626	626	446	429	430	740	740	1167	1169	40	45	110	68.0	67.6	75.0	74.6	727	701	465	461	626	604
120mm Fork Travel
	Flip Chip Position	High Mode	Low Mode	-	High Mode	Low Mode	High Mode	Low Mode	High Mode	Low Mode	High Mode	Low Mode	-	High Mode	Low Mode	High Mode	Low Mode	High Mode	Low Mode	High Mode	Low Mode	High Mode	Low Mode
	XS	561	561	351	430	429	679	679	1107	1108	33	38	90	67.0	66.6	74.0	73.6	674	668	395	391	590	593
	S	577	577	376	430	429	696	695	1124	1125	33	38	95	67.0	66.6	74.0	73.6	684	679	410	406	594	598
	M	599	599	406	430	429	718	717	1146	1147	33	38	100	67.0	66.6	74.0	73.6	687	681	430	426	599	602
	L	626	626	446	430	429	746	746	1176	1177	33	38	110	67.0	66.6	74.0	73.6	715	710	456	451	609	612
