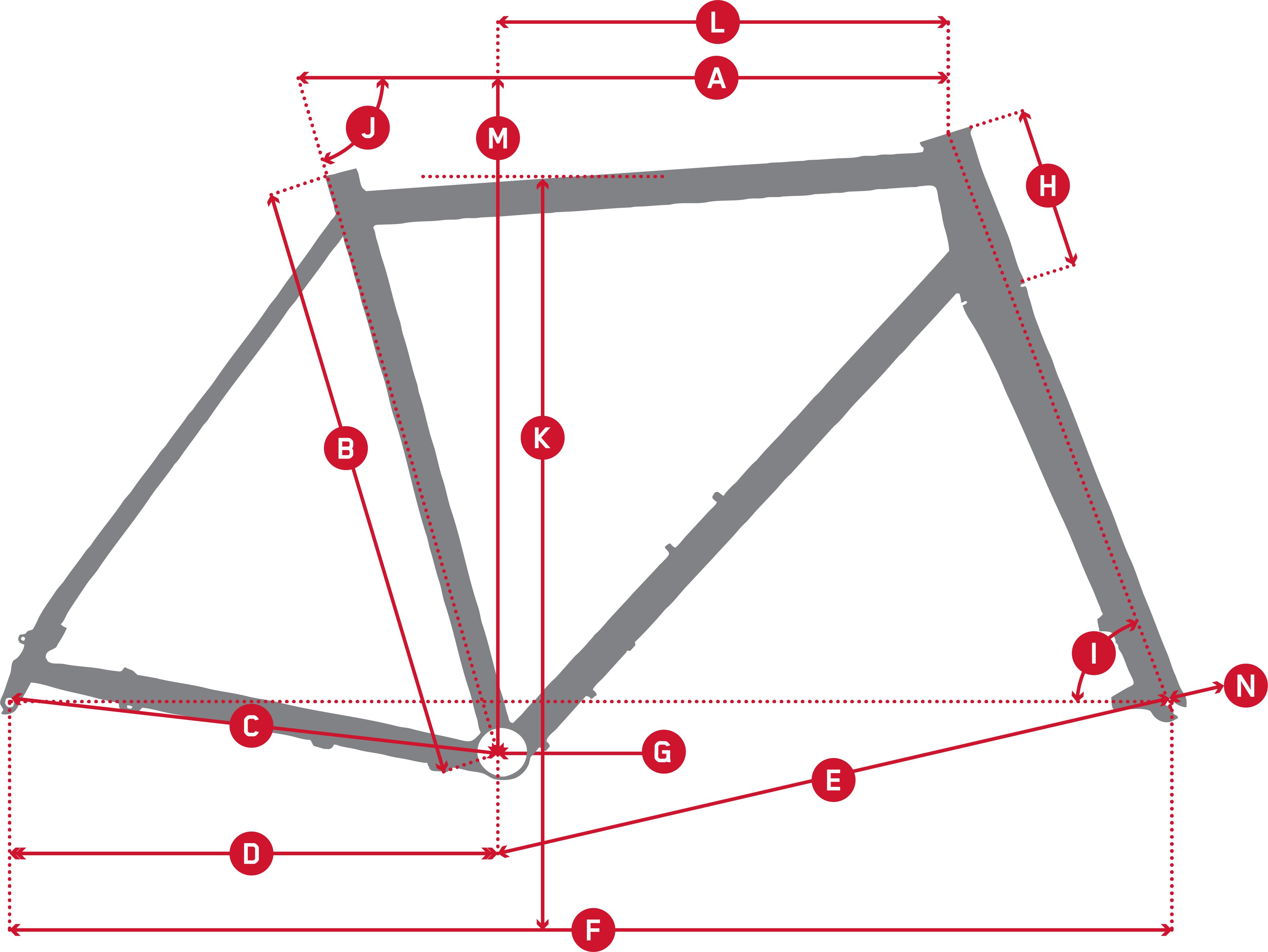

| (A) TT Length | (B) Seat Tube Length | (C) Chainstay Length Actual | (D) Horizontal Chainstay | (E) Front Center | (F) Wheelbase | (G) BB Drop | (H) Headtube Length | (I) Headtube Angle | (J) Seattube Angle | (K) Standover Height | (L) Reach | (M) Stack | (N) Fork Rake | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Metric | |||||||||||||||
| 47cm | 510 | 470 | 435 | 430 | 583 | 1008 | 75.0 | 110 | 70.0 | 74.5 | 735 | 365 | 543 | 45 | |
| 50cm | 525 | 500 | 435 | 430 | 589 | 1015 | 75.0 | 125 | 70.5 | 74.0 | 757 | 367 | 558 | 45 | |
| 53cm | 545 | 530 | 435 | 430 | 600 | 1025 | 75.0 | 145 | 71.0 | 73.5 | 781 | 375 | 579 | 45 | |
| 56cm | 565 | 560 | 435 | 430 | 611 | 1038 | 70.0 | 165 | 71.5 | 73.0 | 809 | 384 | 597 | 45 | |
