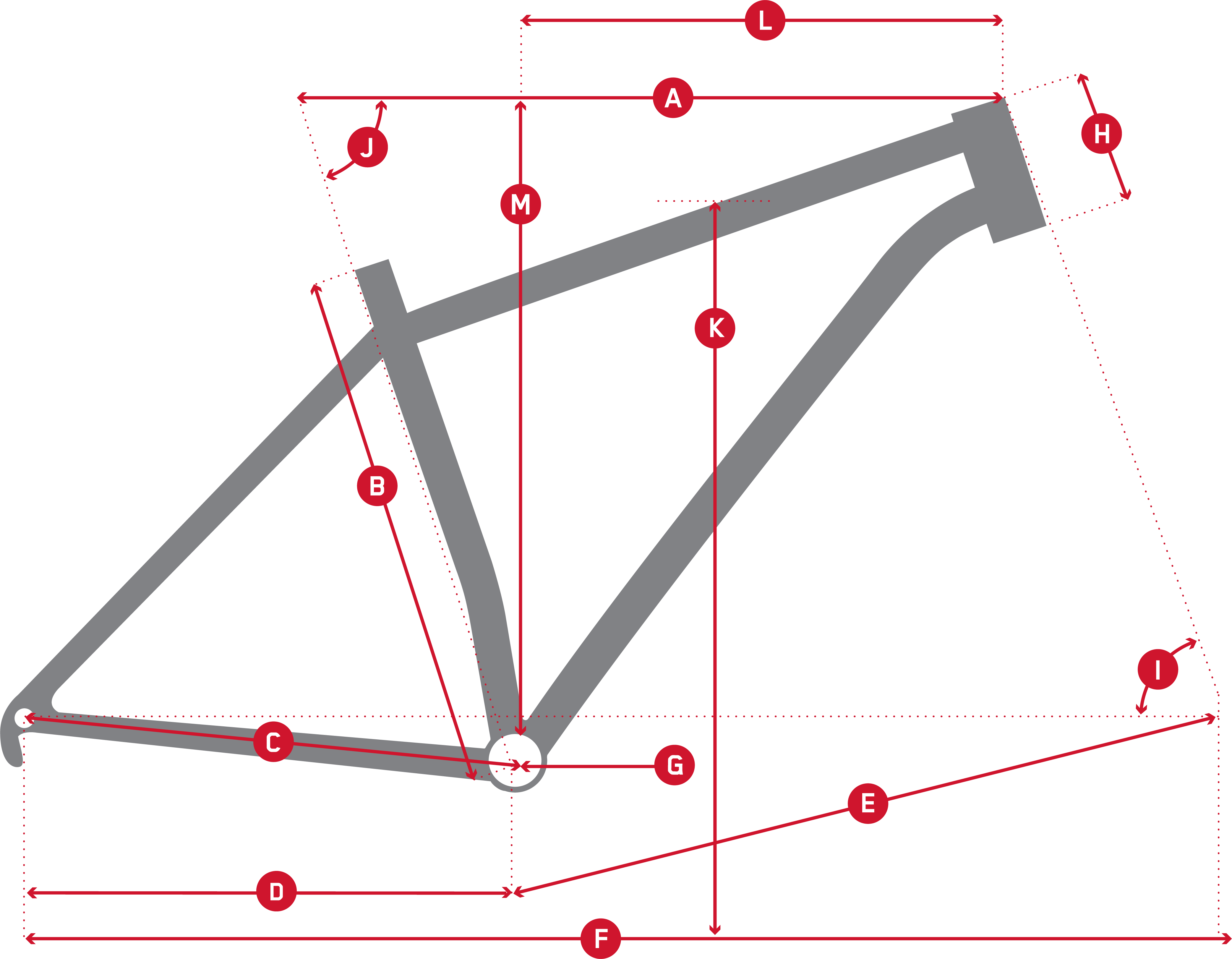

| (A) TT Length | (B) Seat Tube Length | (C) Chainstay Length Actual | (D) Horizontal Chainstay | (E) Front Center | (F) Wheelbase | (G) BB Drop | (H) Headtube Length | (I) Headtube Angle | (J) Seattube Angle | (K) Standover Height | (L) Reach | (M) Stack | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Metric | ||||||||||||||
| Fork Travel (MM) | 120 | 120 | 120 | 120 | 120 | 120 | 120 | 120 | 120 | 120 | 120 | 120 | 120 | |
| S | 595 | 396 | 430 | 427 | 693 | 1118 | 52.0 | 100 | 68.0 | 74.0 | 721 | 410 | 611 | |
| M | 603 | 421 | 430 | 427 | 711 | 1136 | 52.0 | 110 | 68.0 | 74.0 | 739 | 425 | 620 | |
| L | 627 | 485 | 430 | 427 | 737 | 1162 | 52.0 | 125 | 68.0 | 74.0 | 791 | 445 | 634 | |
